Evaporator Return Bend pipe auto Welding Machine orbital welding equipment with orbital welding system

  • 1
  • 2

Brand Name : Hyzont/Mwelding

Model Number : MWH-15/16

Certification : CCC

Place of Origin : China

MOQ : 1Set

Price : negotiable

Supply Ability : 100 Sets a month

Delivery Time : 3 Days after Payment

Packaging Details : Flight Case

Name : Condenser U Tubing Tube Welding Machine

Model : MWH-15/16

Application : Stainless Steel Condenser U tube Auto Weld Fabricating

Weld Current : Max. 200A

U tube Material : Stainless Steel

U tube Thickness : 1-3mm

Type of Welding : TIG/GWAT (No wire feeding)

Place Origin : China

Contact Now

Evaporator Return Bend pipe auto Welding Machine orbital welding equipment with orbital welding system

Application:

A specially designed TIG welding head for automatic welding of stainless steel condenser U-tubes, operating on the same principle as orbital welding.

  • Condenser U tube welding
  • Evaporator U tube welding
  • Heat exchanger fabricating
  • Carbon Steel U tubing weld
  • Stainless Steel U tubing weld
Evaporator Return Bend pipe auto Welding Machine orbital welding equipment with orbital welding system
Features:

Customized design suitable for all types of U-tubes

Quick-install clamps for easy use

Low labor cost with high welding efficiency

Collision-free welding with reliable contact in narrow-space U-tube applications

Heat-resistant components in a compact, light and durable design

Water-circuit cooling design for long-duration operation


Specification:

ModelMWH-15/16
MaterialCarbon steel, Stainless Steel, Titanium Alloy
Tube FittingPlugged U tube
Welding ProcessTIG/GTAW (no wire feeding)
Tube OD(mm/inch)12.7-15.88 mm
Tube Wall Thickness(mm)3 mm
Tungsten OD(mm)1.6
Rotating360° free rotation with auto reset; all-position welding
Rotation speed(rpm)0.3-6
Protective GasArgon
CoolingWater
Cooling Flow(ml/min)1000 ml/min
Cable Length6 m
Main Dimension(mm)
Weight(kg)1 kg
Dimension(mm)377 x 38 x 100

Power Source Specification:

ModelMWA-200F
Welding sourceEWM (Germany)
Welding Current200 A
Power source typeInverter
Duty Cycle200 A / 25%, 120 A / 100%
Input VoltageAC 220 V ±10%, 50/60 Hz
Power6.3 kVA
CoolingBuilt-in water cooling
Display7-inch touch screen
Programs Storage32
PrinterBuilt-in printer
Insulation GradeH
Protection ClassIP21
Weight18 kg
Dimension590 x 300 x 325
Control Function

Argon gas control

Continuous welding current and pulse current control

Welding head rotation control

Wire feeding control

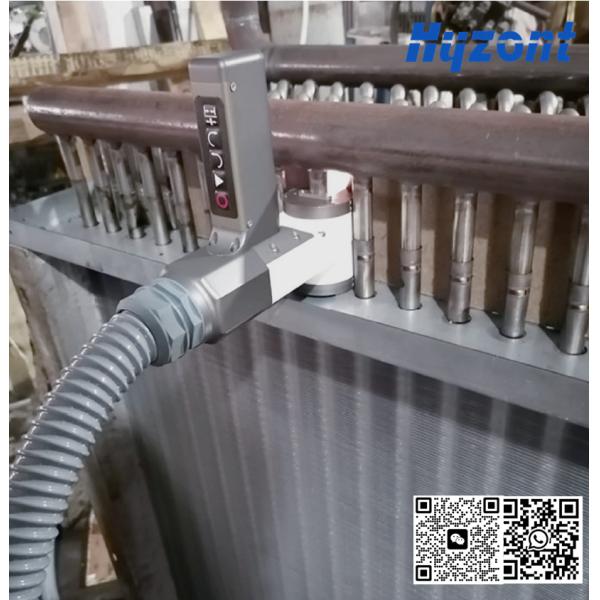

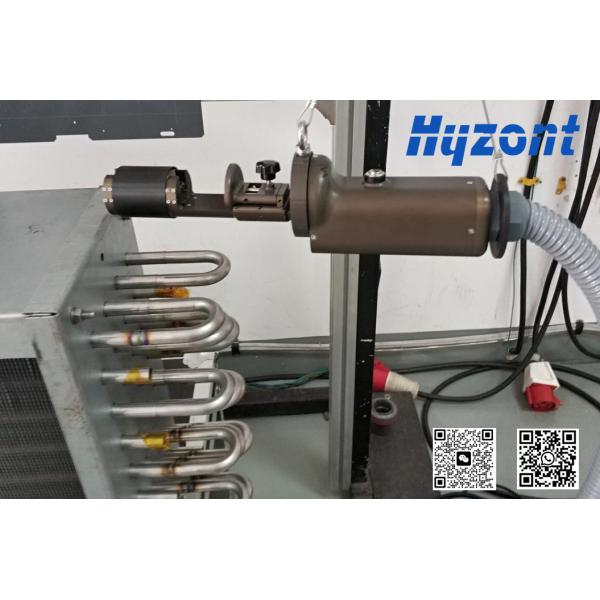

Detailed Pictures

Evaporator Return Bend pipe auto Welding Machine orbital welding equipment with orbital welding system

HYZONT (SHANGHAI) INDUSTRIAL TECHNOLOGIES CO., LTD.
Add: Building 1, Lane 99 Shenmei Road, Pudong District, Shanghai, China
Sales Manager: Mr. Raymond
Mob: +86 15021164313 | WhatsApp: +8615021164313 | WeChat: +8615021164313
